SKS Hirschmann Test & Measurement

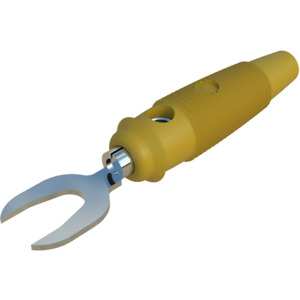

SKS Hirschmann Test & Measurement KB 2 gelb / yellow Test Plug, Yellow, Fork Type Cable Lug, 30A
Part #NS04 930584103
MFG #KB 2 gelb / yellow
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KB 2 gelb / yellow Test Plug, Yellow, Fork Type Cable Lug, 30A
Part #NS04 930584103
MFG #KB 2 gelb / yellow
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Cable lug with shatter-proof, flexible insulated sleeve with 4 mm diameter transverse hole. Screw connection up to a maximum of 1.5 mm². For connection to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Plug
Series:Â KB Series
Alternate Product Number:Â 930584103
AC Voltage:Â 30 V
Color:Â Yellow
Connection:Â Screw Terminal
Current Rating:Â 30 A
DC Voltage:Â 60 V
Flammability Rating:Â HB
Housing Material:Â PVC-P
Material:Â Brass, Nickel Plated
Temperature Range: -25 to +70°C
Terminal Type:Â Screw
Voltage Rating:Â 60 V
£
£
Multiples of: 50
