SKS Hirschmann Test & Measurement

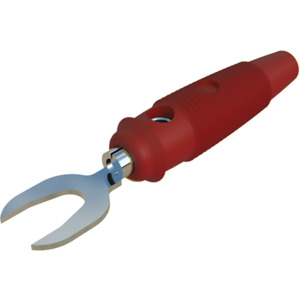

SKS Hirschmann Test & Measurement KB 3 rot / red Test Plug, Red, Fork Type Cable Lug, 30A
Part #NS04 930585101
MFG #KB 3 rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KB 3 rot / red Test Plug, Red, Fork Type Cable Lug, 30A
Part #NS04 930585101
MFG #KB 3 rot / red
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Cable lug with shatter-proof, flexible insulated sleeve with 4 mm diameter transverse hole. Solder connection up to a maximum of 2.5 mm². For connection to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Plug
Series:Â KB Series
Alternate Product Number:Â 930585101
AC Voltage:Â 30 V
Color:Â Red
Connection:Â Solder
Current Rating:Â 30 A
DC Voltage:Â 60 V
Housing Material:Â PVC-P
Material:Â Brass, Nickel Plated
Temperature Range: -25 to +70°C
Terminal Type:Â Screw
US SKU #:Â 10117646
Voltage Rating:Â 60 V
£
£
Multiples of: 50
