SKS Hirschmann Test & Measurement

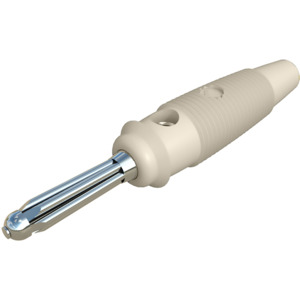

SKS Hirschmann Test & Measurement BUELA 20 K weiss / white Test Plug, White, Insulated, Screw Terminal, 16A
Part #NS04 930726107
MFG #BUELA 20 K weiss / white
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BUELA 20 K weiss / white Test Plug, White, Insulated, Screw Terminal, 16A
Part #NS04 930726107
MFG #BUELA 20 K weiss / white
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead.Screw connection up to maximum cable cross-section of 1.5 mm². Nickel-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Plug
Series:Â BUELA Series
Alternate Product Number:Â 930726107
AC Voltage:Â 30 V
Color:Â White
Connection:Â Screw Terminal
Current Rating:Â 16 A
DC Voltage:Â 60 V
Housing Material:Â PVC-P
Material:Â Brass, Nickel Plated
Pin Size:Â 4 mm
Temperature Range: -25 to +70°C
Terminal Type:Â Screw
US SKU #:Â 10117656
Voltage Rating:Â 60 V
£
£
Multiples of: 50
