SKS Hirschmann Test & Measurement

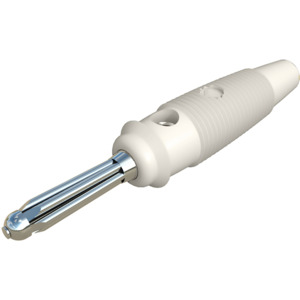

SKS Hirschmann Test & Measurement BUELA 30 K weiss / white Test Plug, White, 4mm Pin, Solder Terminal, 30A
Part #NS04 930727107
MFG #BUELA 30 K weiss / white
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BUELA 30 K weiss / white Test Plug, White, 4mm Pin, Solder Terminal, 30A
Part #NS04 930727107
MFG #BUELA 30 K weiss / white
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Plug
Series:Â BUELA Series
Alternate Product Number:Â 930727107
AC Voltage:Â 30 V
Color:Â White
Connection:Â Solder
Current Rating:Â 30 A
DC Voltage:Â 60 V
Housing Material:Â PVC-P
Material:Â Brass, Nickel Plated
Pin Size:Â 4 mm
Temperature Range: -25 to +70°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10117662
Voltage Rating:Â 60 V
£
£
Multiples of: 50
