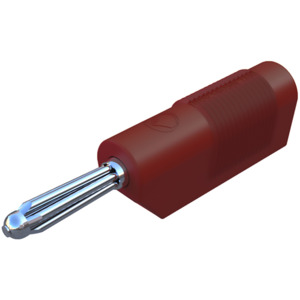

SKS Hirschmann Test & Measurement BSB 20 K rot / red Banana Plug, Red, Stackable, Screw Terminal, 24A
Part #NS04 930729101
MFG #BSB 20 K rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BSB 20 K rot / red Banana Plug, Red, Stackable, Screw Terminal, 24A
Part #NS04 930729101
MFG #BSB 20 K rot / red
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Multiple-spring wire plug with cable gland and 4 mm socket for onward connection cabability. Screw connection up to maximum cable cross-section of 2.5 mm² and external diameter of 4 mm. Nickel-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Banana Plug
Series:Â BSB Series
Alternate Product Number:Â 930729101
AC Voltage:Â 30 V
Color:Â Red
Connection:Â Screw Terminal
Current Rating:Â 30 A
DC Voltage:Â 60 V
Flammability Rating:Â HB
Housing Material:Â PP
Material:Â Brass, Nickel Plated
Pin Size:Â 4 mm
Socket Size:Â 4 mm
Style:Â Stackable
Temperature Range: -25 to +100°C
Terminal Type:Â Screw
US SKU #:Â 10117666
Voltage Rating:Â 60 V
£
£
