SKS Hirschmann Test & Measurement

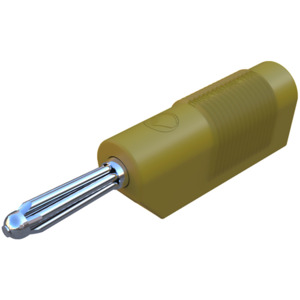

SKS Hirschmann Test & Measurement BSB 20 K gelb / yellow Banana Plug, Yellow, Stackable, Screw Terminal, 24A
Part #NS04 930729103
Condition:New
MFG #BSB 20 K gelb / yellow
- Description
- Attributes
- Documents
Multiple-spring wire plug with cable gland and 4 mm socket for onward connection cabability. Screw connection up to maximum cable cross-section of 2.5 mm² and external diameter of 4 mm. Nickel-plated brass contact material.
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: BSB Series
Alternate Product Number: 930729103
AC Voltage: 30 V
Color: Yellow
Connection: Screw Terminal
Current Rating: 30 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: PP
Material: Brass, Nickel Plated
Pin Size: 4 mm
Socket Size: 4 mm
Style: Stackable
Temperature Range: -25 to +100°C
Terminal Type: Screw
US SKU #: 10117668
Voltage Rating: 60 V
