SKS Hirschmann Test & Measurement

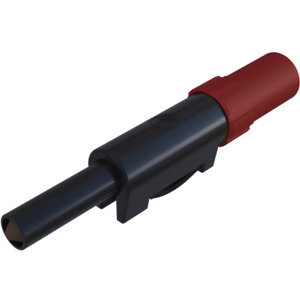

SKS Hirschmann Test & Measurement SLS 10 B rot / red Banana Plug, Red, 4mm, Touch Proof, Solder, 30A
Part #NS04 931824101
Condition:New
MFG #SLS 10 B rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SLS 10 B rot / red Banana Plug, Red, 4mm, Touch Proof, Solder, 30A
Part #NS04 931824101
Condition:New
MFG #SLS 10 B rot / red
- Description
- Attributes
- Documents
Touch protected plug to assemble with solder connection for cables up to 2.5mm². Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. Plug with contact spring, 4mm diameter.
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: SLS Series
Alternate Product Number: 931824101
AC Voltage: 30 V
Color: Red
Connection: Solder
Current Rating: 30 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: POM
Material: Brass, Nickel Plated
Pin Size: 4 mm
Style: Touch Proof
Temperature Range: -25 to +80°C
Terminal Type: Solder Terminal
US SKU #: 10117695
Voltage Rating: 60 V
