SKS Hirschmann Test & Measurement

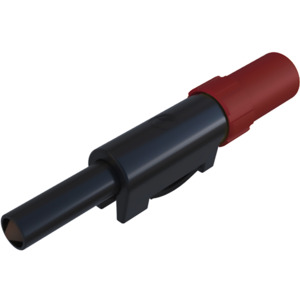

SKS Hirschmann Test & Measurement SLS 20 B rot / red Banana Plug, Red, 4mm, Touch-Proof, Screw, 16A
Part #NS04 931825101
Condition:New
MFG #SLS 20 B rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SLS 20 B rot / red Banana Plug, Red, 4mm, Touch-Proof, Screw, 16A
Part #NS04 931825101
Condition:New
MFG #SLS 20 B rot / red
- Description
- Attributes
- Documents
Touch protected plug to assemble with screw connection for cables up to 1.5mm². Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. Plug with contact spring, 4mm diameter.
Apply to this typ 150 VDC, CAT II; according IEC / EN 61010-031 item 6.4.2; allowed for devices that are equipped with terminals which cannot accept fully shrouded connectors.
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: SLS Series
Alternate Product Number: 931825101
AC Voltage: 30 V
Color: Red
Connection: Screw Terminal
Current Rating: 16 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: POM
Material: Brass, Nickel Plated
Pin Size: 4 mm
Style: Touch Proof
Temperature Range: -25 to +80°C
Terminal Type: Screw
US SKU #: 10117701
Voltage Rating: 60 V
