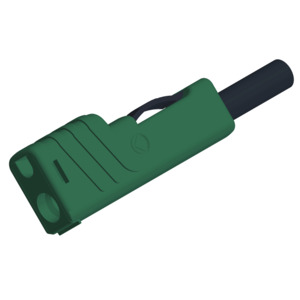

SKS Hirschmann Test & Measurement SLS 200 grun / green Banana Plug, Green, 4mm, Touch-Proof, Screw, 16A

Part #NS04 932153104

MFG #SLS 200 grun / green

SKS Hirschmann Test & Measurement SLS 200 grun / green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement SLS 200 grun / green Banana Plug, Green, 4mm, Touch-Proof, Screw, 16A

Part #NS04 932153104

MFG #SLS 200 grun / green

£
£
Multiples of: 50

Contact protected plug with screw connection for cables up to 2.5 mm², with onward connection capability (4 mm socket). Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. Plug with contact spring, 4mm diameter.


For this typ up to DC 150 V, CAT II according IEC/EN 61010-31 item 6.4., comment 4 allowed for devices with not yet protected sockets.


Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: SLS Series
Alternate Product Number: 932153104
AC Voltage: 30 V
Color: Green
Connection: Screw Terminal
Current Rating: 30 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: PP
Material: Brass, Nickel Plated
Pin Size: 4 mm
Style: Touch Proof
Temperature Range: -25 to +80°C
Terminal Type: Screw
US SKU #: 10117710
Voltage Rating: 60 V
£
£
Multiples of: 50
