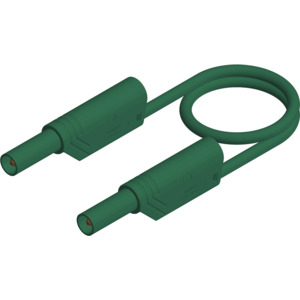

SKS Hirschmann Test & Measurement MLS WS 50/1 gruen / green Banana Plug, Green, Safety, 20", 18AWG, MLS Series

Part #NS04 934068104

MFG #MLS WS 50/1 gruen / green

SKS Hirschmann Test & Measurement MLS WS 50/1 gruen / green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement MLS WS 50/1 gruen / green Banana Plug, Green, Safety, 20", 18AWG, MLS Series

Part #NS04 934068104

MFG #MLS WS 50/1 gruen / green

£
£
Multiples of: 25

Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages.

List of compatible systems und Product groups:

  • 4 mm safety system / Clamp-type test probe
  • 4 mm safety system / Test probes
  • 4 mm safety system / Crocodile clips
  • 4 mm safety system / Sockets

Brand: SKS Hirschmann Test & Measurement
Series: MLS Series
Alternate Product Number: 934068104
Cable Material: PVC
Color: Green
Conductor Size: 18AWG
Current Rating: 16 A
Flammability Rating: V-2
Housing Material: PA
Length: 20"
Material: Brass, Nickel Plated
Measurement Rate: CAT II
Pin Size: 4 mm
Socket Size: 4 mm
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115233
Voltage Rating: 1000 V
£
£
Multiples of: 25
