SKS Hirschmann Test & Measurement MLS GG 100/2,5 grau/grey Banana Plug, Gray, 4mm, 40", 14AWG, MLS Series
Part #NS04 934075106
Condition:New
MFG #MLS GG 100/2,5 grau/grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MLS GG 100/2,5 grau/grey Banana Plug, Gray, 4mm, 40", 14AWG, MLS Series
Part #NS04 934075106
Condition:New
MFG #MLS GG 100/2,5 grau/grey
- Description
- Attributes
- Documents

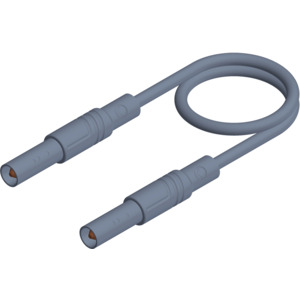

Safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
List of compatible systems und Product groups:
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand: SKS Hirschmann Test & Measurement
Series: MLS Series
Alternate Product Number: 934075106
Cable Material: PVC
Color: Gray
Conductor Size: 14AWG
Current Rating: 32 A
Flammability Rating: V-2
Housing Material: PA
Length: 40"
Material: Brass, Nickel Plated
Pin Size: 4 mm
Safety Rating: CAT III
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115281
Voltage Rating: 1000 V
