SKS Hirschmann Test & Measurement

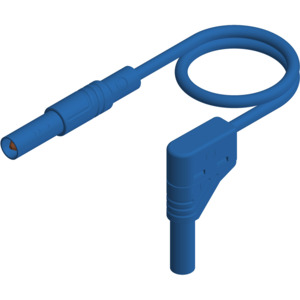

SKS Hirschmann Test & Measurement MLS WG 50/2,5 blau / blue Banana Plug, Blue, Angled/Straight, 20", 14AWG
Part #NS04 934081102
Condition:New
MFG #MLS WG 50/2,5 blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MLS WG 50/2,5 blau / blue Banana Plug, Blue, Angled/Straight, 20", 14AWG
Part #NS04 934081102
Condition:New
MFG #MLS WG 50/2,5 blau / blue
- Description
- Attributes
- Documents
Safety measuring lead, at either end 4 mm diameter safety connector with straight/rectangular outlet and integrated kink protection. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
List of compatible systems und Product groups:
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand: SKS Hirschmann Test & Measurement
Series: MLS Series
Alternate Product Number: 934081102
Cable Material: PVC
Color: Blue
Conductor Size: 14AWG
Current Rating: 32 A
Flammability Rating: V-2
Housing Material: PA
Length: 20"
Material: Brass, Nickel Plated
Pin Size: 4 mm
Safety Rating: CAT III
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115318
Voltage Rating: 1000 V
