SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KUN S schwarz / black Test Socket, Black, 1000V, Screw Terminal, 24A
Part #NS04 934096100
MFG #KUN S schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KUN S schwarz / black Test Socket, Black, 1000V, Screw Terminal, 24A
Part #NS04 934096100
MFG #KUN S schwarz / black
£
£
Multiples of: 50
- Description
- Attributes
- Documents

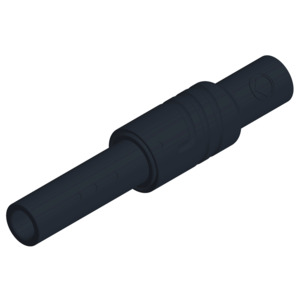

Safety coupling with screw connection for leads from 0.5mm² to 1.5mm², outer diameter of lead max. 4,2mm. Connectable with plugs 4mm and safety plugs 4mm. 1000V-system, IEC 61010. Simple assembly by "Click-System".
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â KUN Series
Alternate Product Number:Â 934096100
AC Voltage:Â 1000 V
Color:Â Black
Connection:Â Screw Terminal
Current Rating:Â 24 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Nickel Plated
Measurement Rate:Â CAT III
Temperature Range: -15 to +70°C
Terminal Type:Â Screw
US SKU #:Â 10117711
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
