SKS Hirschmann Test & Measurement

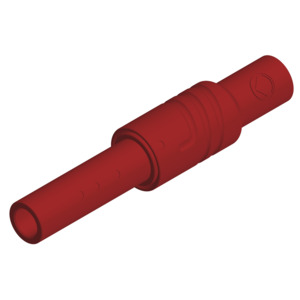

SKS Hirschmann Test & Measurement KUN S rot / red Test Socket, Red, 1000V, Screw Terminal, 24A
Part #NS04 934096101
Condition:New
MFG #KUN S rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KUN S rot / red Test Socket, Red, 1000V, Screw Terminal, 24A
Part #NS04 934096101
Condition:New
MFG #KUN S rot / red
- Description
- Attributes
- Documents
Safety coupling with screw connection for leads from 0.5mm² to 1.5mm², outer diameter of lead max. 4,2mm. Connectable with plugs 4mm and safety plugs 4mm. 1000V-system, IEC 61010. Simple assembly by "Click-System".
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: KUN Series
Alternate Product Number: 934096101
AC Voltage: 1000 V
Color: Red
Connection: Screw Terminal
Current Rating: 24 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Nickel Plated
Safety Rating: CAT III
Temperature Range: -15 to +70°C
Terminal Type: Screw
US SKU #: 10117712
Voltage Rating: 1000 V
