SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement LAS S W schwarz / black Banana Plug LAS S W, Black, 4mm, Angled, LAS Series
Part #NS04 934098100
Condition:New
MFG #LAS S W schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement LAS S W schwarz / black Banana Plug LAS S W, Black, 4mm, Angled, LAS Series
Part #NS04 934098100
Condition:New
MFG #LAS S W schwarz / black
- Description
- Attributes
- Documents

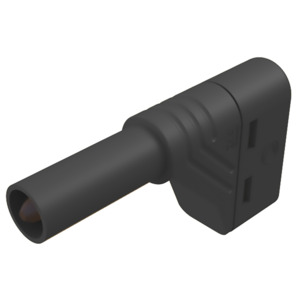

Safety angled connector with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with caged spring, 1000 V-system, IEC 61010. Simple assembly by "Click-System".
List of compatible systems und Product groups:
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: LAS Series
Alternate Product Number: 934098100
AC Voltage: 1000 V
Color: Black
Connection: Screw Terminal
Current Rating: 24 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Nickel Plated
Pin Size: 4 mm
Style: Angled
Temperature Range: -15 to +70°C
Terminal Type: Screw
US SKU #: 10117725
Voltage Rating: 1000 V
