SKS Hirschmann Test & Measurement

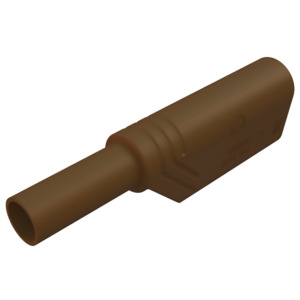

SKS Hirschmann Test & Measurement LAS S WS braun/brown Banana Plug, LAS S WS, Brown, 4mm, 1000V, 24A
Part #NS04 934099105
MFG #LAS S WS braun/brown
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement LAS S WS braun/brown Banana Plug, LAS S WS, Brown, 4mm, 1000V, 24A
Part #NS04 934099105
MFG #LAS S WS braun/brown
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Safety connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with caged spring, rigid socket 4 mm, 1000 V-system. Simple assembly by "Click-System".
List of compatible systems und Product groups:
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Banana Plug
Series:Â LAS Series
Alternate Product Number:Â 934099105
AC Voltage:Â 1000 V
Color:Â Brown
Connection:Â Screw Terminal
Current Rating:Â 24 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Nickel Plated
Pin Size:Â 4 mm
Temperature Range: -15 to +70°C
Terminal Type:Â Screw
US SKU #:Â 10117735
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
