SKS Hirschmann Test & Measurement

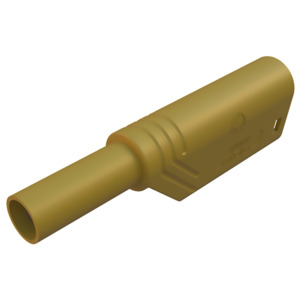

SKS Hirschmann Test & Measurement LAS S WS gelb / yellow AU Banana Plug, LAS S WS Au, Gold, Yellow, 4mm, 24A
Part #NS04 934099703
Condition:New
MFG #LAS S WS gelb / yellow AU
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement LAS S WS gelb / yellow AU Banana Plug, LAS S WS Au, Gold, Yellow, 4mm, 24A
Part #NS04 934099703
Condition:New
MFG #LAS S WS gelb / yellow AU
- Description
- Attributes
- Documents
Safety connector for tower construction with screw connection for leads from 0.5 mm² to 1.5 mm², outer diameter of lead max. 4.2 mm. Plug 4 mm with caged spring, rigid socket 4 mm, 1000 V-system. Simple assembly by "Click-System".
List of compatible systems und Product groups:
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: LAS Series
Alternate Product Number: 934099703
AC Voltage: 1000 V
Color: Yellow
Connection: Screw Terminal
Current Rating: 24 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Pin Size: 4 mm
Temperature Range: -15 to +70°C
Terminal Type: Screw
US SKU #: 10117742
Voltage Rating: 1000 V
