SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KLEPS 2700 schwarz / black Test Probe, Black, Plunger Style, SS Tip
Part #NS04 972307100
MFG #KLEPS 2700 schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement KLEPS 2700 schwarz / black Test Probe, Black, Plunger Style, SS Tip
Part #NS04 972307100
MFG #KLEPS 2700 schwarz / black
£
£
Multiples of: 10
- Description
- Attributes
- Documents

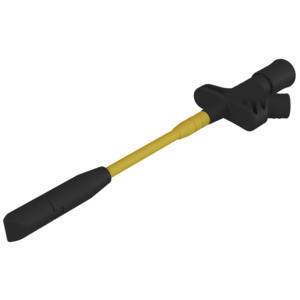

Clamp-type test probe with split test clamp. The sprung stainless steel tip can contact insulated leads with cross-sections between 0.25 mm² and 1.5 mm² (3.5 mm diameter) without the need to strip them. 4 mm diameter brass socket connection.
Brand:Â SKS Hirschmann Test & Measurement
Series:Â KLEPS Series
Alternate Product Number:Â 972307100
AC Voltage:Â 30 V
Color:Â Black
Connection:Â Unsprung Socket 4 mm
Current Rating:Â 10 A
DC Voltage:Â 60 V
Flammability Rating:Â HB
Housing Material:Â PBT
Material:Â Brass
Range:Â 3.5 mm
Socket Size:Â 4 mm
Style:Â Plunger
Temperature Range: -25 to +70°C
Terminal Type:Â Socket
Type:Â Test Probe
US SKU #:Â 10112266
Voltage Rating:Â 60 V
£
£
Multiples of: 10
