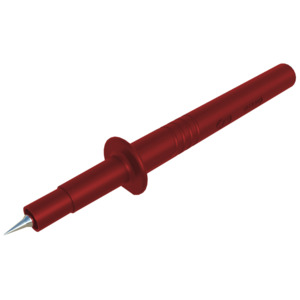

SKS Hirschmann Test & Measurement PRUEF 2700 rot / red Test Probe, Red, Stationary Tip 4mm, 4mm Socket
Part #NS04 972319101
Condition:New
MFG #PRUEF 2700 rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PRUEF 2700 rot / red Test Probe, Red, Stationary Tip 4mm, 4mm Socket
Part #NS04 972319101
Condition:New
MFG #PRUEF 2700 rot / red
- Description
- Attributes
- Documents
Safety test probe with dual function. Tip for penetrating oxide layers and 4 mm diameter pin for insertion in sockets. 4 mm diameter brass socket connection. Connects with safety measuring leads.
Brand: SKS Hirschmann Test & Measurement
Series: PRUEF Series
Alternate Product Number: 972319101
AC Voltage: 1000 V
Color: Red
Connection: Unsprung Socket, 4 mm
Current Rating: 32 A
DC Voltage: 1000 V
Flammability Rating: HB
Housing Material: PP
Material: Brass, Nickel Plated
Safety Rating: CAT II
Socket Size: 4 mm
Style: Stationary Tip
Temperature Range: -25 to +70°C
Terminal Type: Socket
Type: Test Probe
US SKU #: 10113768
Voltage Rating: 1000 V
