SKS Hirschmann Test & Measurement

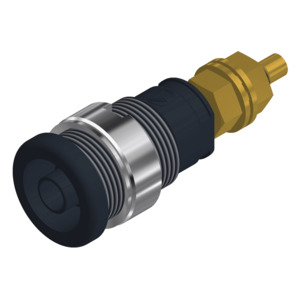

SKS Hirschmann Test & Measurement SEB 2600 G M4 schwarz / black Test Socket, Black, 4mm, Panel Mount, 32A
Part #NS04 972354100
Condition:New
MFG #SEB 2600 G M4 schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEB 2600 G M4 schwarz / black Test Socket, Black, 4mm, Panel Mount, 32A
Part #NS04 972354100
Condition:New
MFG #SEB 2600 G M4 schwarz / black
- Description
- Attributes
- Documents
Safety built-in socket, 4 mm diameter, touch-protected, M 4 thread and solder connection, gold-plated brass. For installation into switch panels and equipment chassis with wall thicknesses up to 6 mm. Installation hole: 12.2 mm diameter, Tightening torque: 50 Ncm, Accessory: assembly tool MW SEB
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: SEB Series
Alternate Product Number: 972354100
AC Voltage: 1000 V
Color: Black
Connection: Solder, M4 Thread
Current Rating: 32 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Mounting Style: Panel Mount
Safety Rating: CAT III
Socket Size: 4 mm
Temperature Range: -40 to +80°C
Terminal Type: Solder Terminal
US SKU #: 10117764
Voltage Rating: 1000 V
