SKS Hirschmann Test & Measurement

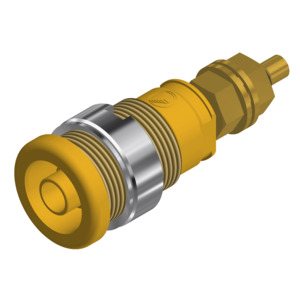

SKS Hirschmann Test & Measurement SEB 2600 G M4 gelb / yellow Test Socket, Yellow, 4mm, Panel Mount, 32A
Part #NS04 972354103
MFG #SEB 2600 G M4 gelb / yellow
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEB 2600 G M4 gelb / yellow Test Socket, Yellow, 4mm, Panel Mount, 32A
Part #NS04 972354103
MFG #SEB 2600 G M4 gelb / yellow
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Safety built-in socket, 4 mm diameter, touch-protected, M 4 thread and solder connection, gold-plated brass. For installation into switch panels and equipment chassis with wall thicknesses up to 6 mm. Installation hole: 12.2 mm diameter, Tightening torque: 50 Ncm, Accessory: assembly tool MW SEB
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SEB Series
Alternate Product Number:Â 972354103
AC Voltage:Â 1000 V
Color:Â Yellow
Connection:Â Solder, M4 Thread
Current Rating:Â 32 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Mounting Style:Â Panel Mount
Socket Size:Â 4 mm
Temperature Range: -40 to +80°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10117767
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
