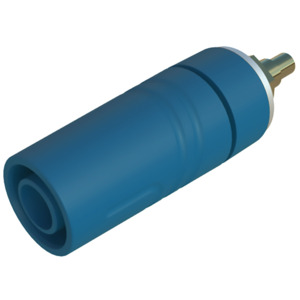

SKS Hirschmann Test & Measurement SAB 2640 LK Au, blau / blue Test Socket, Blue, Gold, 4 mm, 32 A, SAB Series

Part #NS04 972358702

MFG #SAB 2640 LK Au, blau / blue

SKS Hirschmann Test & Measurement SAB 2640 LK Au, blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement SAB 2640 LK Au, blau / blue Test Socket, Blue, Gold, 4 mm, 32 A, SAB Series

Part #NS04 972358702

MFG #SAB 2640 LK Au, blau / blue

£
£
Multiples of: 50

  • Safety surface-mounted socket, 4 mm diameter, contact-protected, gold-plated brass with solder connection.
  • For installation into switch-panels and equipment-chassis of 1-4mm thickness.
  • Connects with safety test leads.

List of compatible systems und Product groups:

  • 4 mm system / Measuring leads
  • 4 mm system / Plugs
  • 4 mm sliding sleeve system / Measuring leads
  • 4 mm sliding sleeve system / Plugs
  • 4 mm safety system / Measuring leads
  • 4 mm safety system / Plugs

Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: SAB Series
Alternate Product Number: 972358702
Color: Blue
Connection: Solder Connection
Current Rating: 32 A
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Measurement Rate: CAT II
Socket Size: 4 mm
Style: Surface-Mounted
Temperature Range: -25 to +70°C
Terminal Type: Socket
US SKU #: 10117805
Voltage Rating: 1000 V
£
£
Multiples of: 50
