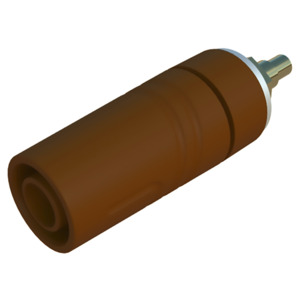

SKS Hirschmann Test & Measurement SAB 2640 LK Au, braun / brown Test Socket, Brown, Gold, 4 mm, 32 A, SAB Series
Part #NS04 972358705
MFG #SAB 2640 LK Au, braun / brown
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SAB 2640 LK Au, braun / brown Test Socket, Brown, Gold, 4 mm, 32 A, SAB Series
Part #NS04 972358705
MFG #SAB 2640 LK Au, braun / brown
£
£
Multiples of: 50
- Description
- Attributes
- Documents
- Safety surface-mounted socket, 4 mm diameter, contact-protected, gold-plated brass with solder connection.
- For installation into switch-panels and equipment-chassis of 1-4mm thickness.
- Connects with safety test leads.
List of compatible systems und Product groups:
- 4 mm system / Measuring leads
- 4 mm system / Plugs
- 4 mm sliding sleeve system / Measuring leads
- 4 mm sliding sleeve system / Plugs
- 4 mm safety system / Measuring leads
- 4 mm safety system / Plugs
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SAB Series
Alternate Product Number:Â 972358705
Color:Â Brown
Connection:Â Solder Connection
Current Rating:Â 32 A
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT II
Socket Size:Â 4 mm
Style:Â Surface-Mounted
Temperature Range: -25 to +70°C
Terminal Type:Â Socket
US SKU #:Â 10117808
Voltage Rating:Â 1000 V
£
£
