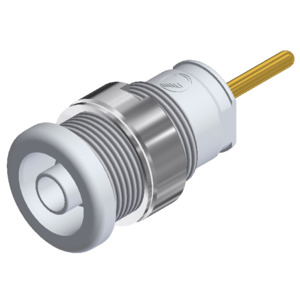

SKS Hirschmann Test & Measurement SEB 2630 S1,9 weiss / white Test Socket, White, 4mm, Panel Mount, Solder, 32A
Part #NS04 972359107
MFG #SEB 2630 S1,9 weiss / white
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEB 2630 S1,9 weiss / white Test Socket, White, 4mm, Panel Mount, Solder, 32A
Part #NS04 972359107
MFG #SEB 2630 S1,9 weiss / white
£
£
Multiples of: 50
- Description
- Attributes
- Documents
Safety built-in socket, 4mm diameter, contact-protected, with 1.9mm soldering spike, gold-plated brass.For installation into switchpanels and equipment chassis with wall thicknesses up to 6mm. Soldering spike can be soldered into printed boards. Installation hole: 12.2 mm diameter. Accessory: assembly tool MW SEB, Tightening torque: 50Ncm
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SEB Series
Alternate Product Number:Â 972359107
AC Voltage:Â 1000 V
Color:Â White
Connection:Â Solder
Current Rating:Â 24 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Mounting Style:Â Panel Mount
Socket Size:Â 4 mm
Temperature Range: -40 to +80°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10117819
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
