SKS Hirschmann Test & Measurement SEP 2610 F4,8 blau / blue Test Socket, Blue, 4mm, Press-in, 24A, SEP Series
Part #NS04 972361102
MFG #SEP 2610 F4,8 blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2610 F4,8 blau / blue Test Socket, Blue, 4mm, Press-in, 24A, SEP Series
Part #NS04 972361102
MFG #SEP 2610 F4,8 blau / blue
£
£
Multiples of: 50
- Description
- Attributes
- Documents

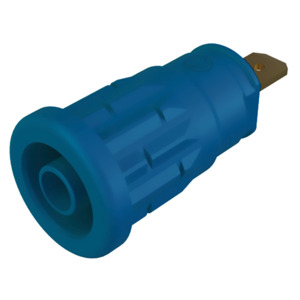

Safety press-in socket, 4 mm diameter, contact-protected, with 4.8 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm. Installation hole: Ø12.2 ±0.1 mm, Entry chamfer: 0.5 x 45°
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SEP Series
Alternate Product Number:Â 972361102
AC Voltage:Â 1000 V
Color:Â Blue
Connection:Â Flat Connector 4.8 x 0.8 mm
Current Rating:Â 24 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Socket Size:Â 4 mm
Temperature Range: -40 to +80°C
Terminal Type:Â Solder
US SKU #:Â 10117833
Voltage Rating:Â 1000 V
£
£
