SKS Hirschmann Test & Measurement

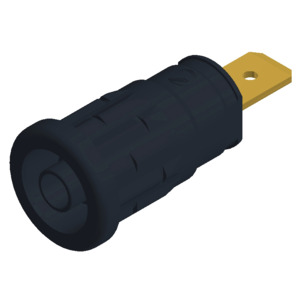

SKS Hirschmann Test & Measurement SEP 2620 F6,3 schwarz / black Test Socket, Black, 4mm, Press-in, 32A, SEP Series
Part #NS04 972362100
Condition:New
MFG #SEP 2620 F6,3 schwarz / black
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2620 F6,3 schwarz / black Test Socket, Black, 4mm, Press-in, 32A, SEP Series
Part #NS04 972362100
Condition:New
MFG #SEP 2620 F6,3 schwarz / black
- Description
- Attributes
- Documents
Safety press-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm. Installation hole: Ø12.2 ±0.1 mm. Entry chamfer: 0.5 x 45°
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: SEP Series
Alternate Product Number: 972362100
AC Voltage: 1000 V
Color: Black
Connection: Flat Connector 6.3 x 0.8 mm
Current Rating: 32 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Safety Rating: CAT III
Socket Size: 4 mm
Temperature Range: -40 to +80°C
Terminal Type: Solder
US SKU #: 10117838
Voltage Rating: 1000 V
