SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2630 S1,9 gelb/gruen, yellow/green Test Socket, Y/G, 4mm, Press-in, 24A, SEP Series
Part #NS04 972363188
Condition:New
MFG #SEP 2630 S1,9 gelb/gruen, yellow/green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2630 S1,9 gelb/gruen, yellow/green Test Socket, Y/G, 4mm, Press-in, 24A, SEP Series
Part #NS04 972363188
Condition:New
MFG #SEP 2630 S1,9 gelb/gruen, yellow/green
- Description
- Attributes
- Documents

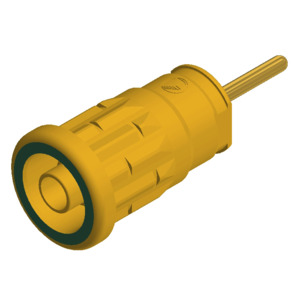

Gold-plated brass safety press-in socket, 4 mm diameter, contact-protected, with 1.9 mm soldering spike. For installation into switchpanels with wall thicknesses between 1 mm and 10 mm. Installation hole: 12.2 +/-0.1 mm diameter. Entry chamfer 0.5 x 45 degree.
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: SEP Series
Alternate Product Number: 972363188
AC Voltage: 1000 V
Color: Yellow, Green
Connection: Solder
Current Rating: 24 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Safety Rating: CAT III
Socket Size: 4 mm
Temperature Range: -40 to +80°C
Terminal Type: Solder
US SKU #: 10117850
Voltage Rating: 1000 V
