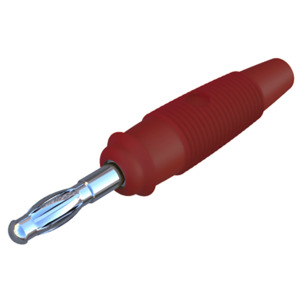

Laminated, shatter-proof plug with caged spring and tapering sleeve providing protection against kinking. Soldered connections up to 1.5mm², cable diameters up to 4.2mm. Nickel-plated brass contact, nickel-plated copper beryllium contact spring.
List of compatible systems und Product groups:
- 4 mm system / Clamp-type test probe
- 4 mm system / Test probes
- 4 mm system / Crocodile clips
- 4 mm system / Sockets
- 4 mm sliding sleeve system / Clamp-type test probe
- 4 mm sliding sleeve system / Test probes
- 4 mm safety system / Clamp-type test probe
- 4 mm safety system / Test probes
- 4 mm safety system / Crocodile clips
- 4 mm safety system / Sockets
Brand: SKS Hirschmann Test & Measurement
Type: Test Plug
Series: LAS Series
Alternate Product Number: 972518101
AC Voltage: 30 V
Color: Red
Connection: Solder Connection
Current Rating: 32 A
DC Voltage: 60 V
Housing Material: PVC-P
Material: Brass, Nickel Plated
Pin Size: 4 mm
Temperature Range: -25 to +70°C
Terminal Type: Solder Terminal
US SKU #: 10117852
Voltage Rating: 30 V
