SKS Hirschmann Test & Measurement

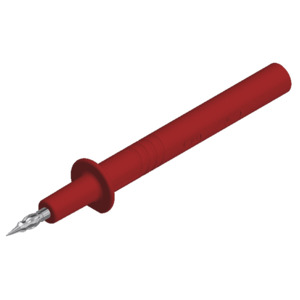

SKS Hirschmann Test & Measurement PRUEF 3 rot / red Test Probe, Red, Stationary Tip 2mm, 4mm Socket
Part #NS04 973369101
Condition:New
MFG #PRUEF 3 rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PRUEF 3 rot / red Test Probe, Red, Stationary Tip 2mm, 4mm Socket
Part #NS04 973369101
Condition:New
MFG #PRUEF 3 rot / red
- Description
- Attributes
- Documents
Test probe with dual function. Tip for penetrating insulation and oxide layers and 4 mm diameter pin for insertion in sockets. 4 mm diameter brass socket connection. Connects with 4 mm measuring leads (standard and safety system). Tip protection included.
Brand: SKS Hirschmann Test & Measurement
Series: PRUEF Series
Alternate Product Number: 973369101
AC Voltage: 30 V
Color: Red
Connection: Unsprung Socket, 4 mm
Current Rating: 32 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: PP
Material: Brass, Nickel Plated
Socket Size: 4 mm
Style: Stationary Tip
Temperature Range: -25 to +70°C
Terminal Type: Socket
Type: Test Probe
US SKU #: 10113780
Voltage Rating: 60 V
