SKS Hirschmann Test & Measurement

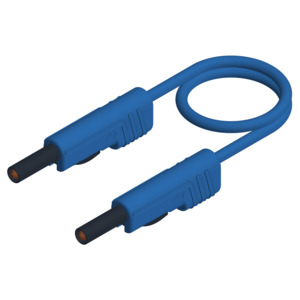

SKS Hirschmann Test & Measurement MLB 25/1 V blau / blue Banana Plug, Blue, 4mm, 10", 18AWG, MLB Series
Part #NS04 973644102
Condition:New
MFG #MLB 25/1 V blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MLB 25/1 V blau / blue Banana Plug, Blue, 4mm, 10", 18AWG, MLB Series
Part #NS04 973644102
Condition:New
MFG #MLB 25/1 V blau / blue
- Description
- Attributes
- Documents
Contact protected test lead on both sides sprung plug Ø 4 mm, insulated by latching and sprung insulated, which is only released by pressure on the lateral locking spring, and rigid socket Ø 4 mm to the far pluginess. Highly flexible, double insulated stranded conductor with integrated color indicator for detecting damage to the insulation.
Brand: SKS Hirschmann Test & Measurement
Series: MLB Series
Alternate Product Number: 973644102
AC Voltage: 30 V
Cable Material: PVC
Color: Blue
Current Rating: 16 A
DC Voltage: 60 V
Flammability Rating: V-2
Housing Material: PA
Length: 10"
Material: Spring: Copper-Beryllium , Pin: Brass
Pin Size: 4 mm
Socket Size: 4 mm
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115492
Voltage Rating: 60 V
