SKS Hirschmann Test & Measurement

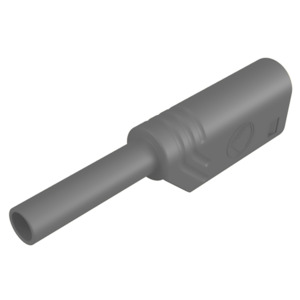

SKS Hirschmann Test & Measurement MST S WS 30 Au grau / grey Banana Plug, Gray, 2mm Socket, 10A, MST Series
Part #NS04 975090706
Condition:New
MFG #MST S WS 30 Au grau / grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MST S WS 30 Au grau / grey Banana Plug, Gray, 2mm Socket, 10A, MST Series
Part #NS04 975090706
Condition:New
MFG #MST S WS 30 Au grau / grey
- Description
- Attributes
- Documents
Safety stackable plug with solder connection for leads from 0.5 mm² to 1.0 mm². Outer diameter of lead max. 2.9 mm. Spring loaded plug and unsprung 2 mm socket for onward connection capability, 1000 V-system, IEC 61010. Simple assembly by "Click-System".
Brand: SKS Hirschmann Test & Measurement
Type: Banana Plug
Series: MST Series
Alternate Product Number: 975090706
AC Voltage: 1000 V
Color: Gray
Connection: Solder
Current Rating: 10 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Pin Size: 2 mm
Safety Rating: CAT III
Socket Size: 2 mm
Temperature Range: -25 to +70°C
Terminal Type: Socket
US SKU #: 10121864
Voltage Rating: 1000 V
