SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MSEB 2610 F 2,8 Au gelb / yellow Test Socket, Yellow, 2mm, Panel Mount, Tab, 10A
Part #NS04 975455703
MFG #MSEB 2610 F 2,8 Au gelb / yellow
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MSEB 2610 F 2,8 Au gelb / yellow Test Socket, Yellow, 2mm, Panel Mount, Tab, 10A
Part #NS04 975455703
MFG #MSEB 2610 F 2,8 Au gelb / yellow
£
£
Multiples of: 50
- Description
- Attributes
- Documents

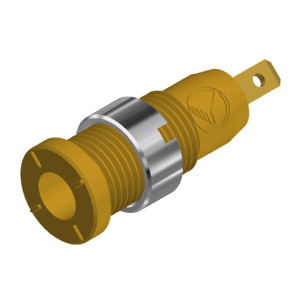

Miniature safety built-in socket, 2mm diameter, gold-plated brass. Flat push-on Connection 2.8x0.8mm complying with DIN 46244. For installation into switch- panels and equipment Chassis till 8mm wall thickness. Installation hole: 8mm diameter
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â MSEB Series
Alternate Product Number:Â 975455703
AC Voltage:Â 1000 V
Color:Â Yellow
Connection:Â Flat Connector
Current Rating:Â 10 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Mounting Style:Â Panel Mount
Socket Size:Â 2 mm
Temperature Range: -25 to +70°C
Terminal Type:Â Socket
US SKU #:Â 10117888
Voltage Rating:Â 1000 V
£
£
Multiples of: 50
