SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MSEB 2610 F 2,8 Au violett / violet Test Socket, Purple, 2mm, Panel Mount, Tab, 10A
Part #NS04 975455709
Condition:New
MFG #MSEB 2610 F 2,8 Au violett / violet
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MSEB 2610 F 2,8 Au violett / violet Test Socket, Purple, 2mm, Panel Mount, Tab, 10A
Part #NS04 975455709
Condition:New
MFG #MSEB 2610 F 2,8 Au violett / violet
- Description
- Attributes
- Documents

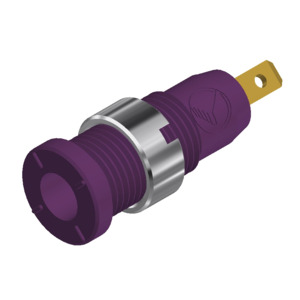

Miniature safety built-in socket, 2mm diameter, gold-plated brass. Flat push-on Connection 2.8x0.8mm complying with DIN 46244. For installation into switch- panels and equipment Chassis till 8mm wall thickness. Installation hole: 8mm diameter
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: MSEB Series
Alternate Product Number: 975455709
AC Voltage: 1000 V
Color: Purple
Connection: Flat Connector
Current Rating: 10 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Mounting Style: Panel Mount
Safety Rating: CAT III
Socket Size: 2 mm
Temperature Range: -25 to +70°C
Terminal Type: Socket
US SKU #: 10117893
Voltage Rating: 1000 V
