SKS Hirschmann Test & Measurement

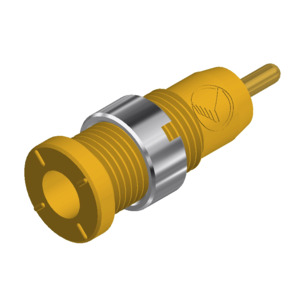

SKS Hirschmann Test & Measurement MSEB 2630 S 1,9 Au gelb / yellow Test Socket, Yellow, 2mm, Gold Plated, Solder, 10A
Part #NS04 975459703
Condition:New
MFG #MSEB 2630 S 1,9 Au gelb / yellow
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MSEB 2630 S 1,9 Au gelb / yellow Test Socket, Yellow, 2mm, Gold Plated, Solder, 10A
Part #NS04 975459703
Condition:New
MFG #MSEB 2630 S 1,9 Au gelb / yellow
- Description
- Attributes
- Documents
Miniature - safety built-in socket, 2 mm diameter, touch protected, 1,9mm soldering spike connection, gold-plated brass. For installation into switch- panels and equipment chassis with a wall thickness up to 8mm. Installation hole: 8mm diameter
Brand: SKS Hirschmann Test & Measurement
Type: Test Socket
Series: MSEB Series
Alternate Product Number: 975459703
AC Voltage: 1000 V
Color: Yellow
Connection: Solder
Current Rating: 10 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Material: Brass, Gold Plated
Safety Rating: CAT III
Socket Size: 2 mm
Temperature Range: -25 to +70°C
Terminal Type: Solder Terminal
US SKU #: 10117897
Voltage Rating: 1000 V
