SKS Hirschmann Test & Measurement

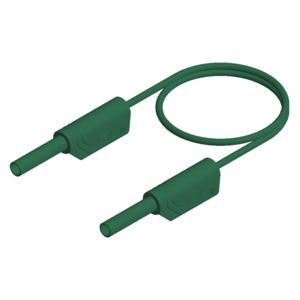

SKS Hirschmann Test & Measurement MVL S WS 25/1 Au grun / green Banana Plug, Green, Gold Plated, 2mm, 10" Length
Part #NS04 975694704
MFG #MVL S WS 25/1 Au grun / green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MVL S WS 25/1 Au grun / green Banana Plug, Green, Gold Plated, 2mm, 10" Length
Part #NS04 975694704
MFG #MVL S WS 25/1 Au grun / green
- Description
- Attributes
- Documents
Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.
Brand: SKS Hirschmann Test & Measurement
Series: MVL Series
Alternate Product Number: 975694704
AC Voltage: 1000 V
Cable Material: PVC
Color: Green
Conductor Size: 1mm²
Current Rating: 10 A
DC Voltage: 1000 V
Flammability Rating: V-2
Housing Material: PA
Length: 10"
Material: Brass, Gold Plated
Measurement Rate: CAT III
Pin Size: 2 mm
Safety Rating: CAT III
Style: Banana
Temperature Range: -15 to +70°C
Type: Test Lead
US SKU #: 10115526
Voltage Rating: 1000 V
