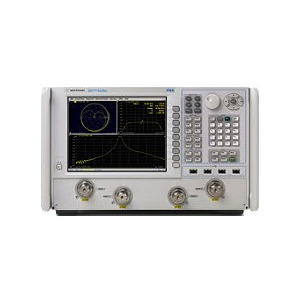

PNA Microwave Network Analyzer 10MHz-26.5GHz. Option: 417 = 4 Ports, Dual Source, Config. Test Set, Extended Power Range. Unit sold with a valid calibration certificate and with 12 months warranty. The Agilent/HP (now Keysight) N5222A is a PNA high-performing microwave network analyzer and is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements. The PNA Series provides high-power sources and the best linear receivers, giving it the most accurate S-parameter measurements with the widest power range in the market. Frequency range: 10 MHz to 26.5 GHz 2 ports with single source or 4-ports with two built-in sources System dynamic range: 127 dB Receiver dynamic range: 132 dB Record length: 100,001 points Channels: 200 IF bandwidth: 15 MHz High output power: +13 dBm Wide power sweep range: 38 dB Low noise floor: -114 dBm at 10 Hz IF bandwidth Automatic calibration with ECal Easy configurable optional test sets and adapter Intuitive user operation, touchscreen Interfaces: LAN, USB, GPIB, VGA, parallel Applications: S-parameters (CW and pulsed) Noise figure Gain compression Intermodulation and harmonic distortion Conversion gain/loss True-differential stimulus Millimeter-wave Material measurements Signal integrity Antenna test
