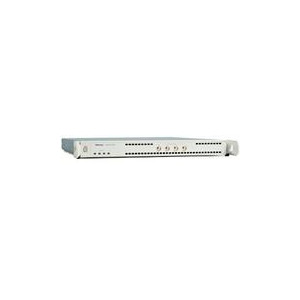

Hub for Synchronization Multiple Arbitrary Waveform Generators The Tektronix AWGSYNC01 is a Hub and enables the multi-instrument synchronization of up to four AWG70001A or AWG70002A units allowing up to eight channels to be aligned to the same clock, pattern jump and trigger inputs. It requires no additional software and allows rapid and consistent synchronization of multiple devices. AWGSYNC01 provides calibration ports to deskew up to four AWG70000 instruments to within +/- 10ps. After the deskew process the AWGSYNC01 can repeatedly return to within <= 5 ps of the same deskew point. Random jitter: 315 fsRMS Total jitter: 13 psp-p at 12.5 Gb/s Instrument to instrument skew: +/-10 ps Skew repeatability/accuracy: <= 5 ps Synchronize signal output from two to four AWG70000 instruments (providing two to eight signal outputs) Synchronize to within +/- 10 ps Trigger all channels to the same resolution
