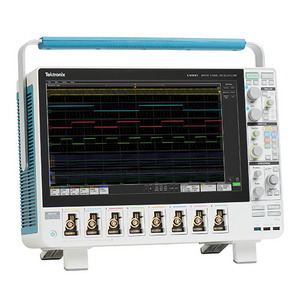

Mixed Signal Oscilloscope, 8 FlexChannels. Option: 5-BW-2000 = 2GHz Bandwidth. Manufacturer´s warranty until 10th April 2026. Input Channels: 8 FlexChannel Each FlexChannel offers one analog signal input or eight digital logic inputs with TLP058-logic probe (optional) Bandwidth: 2 GHz Sample rate (all analog/digital channels): Real time: 6,25 GS/s Interpolate: 500 GS/s Record length (all analog/digital channels): 62.5 Mio. points Standard 125 Mio. points (optional) Capture rate: >500.000 Signals/s Vertical resolution: 12 Bit ADC Up to 16 Bit in Hi-Res-Mode Standard trigger types: Signal flank, Pulse width, Runt, Timeout, Window, Logic, Setup & Hold, Rise time/Fall time, Parallel-Bus, Sequence Standard analysis: Cursor: Kurvenform, V-Balken, H-Balken, V&H-Balken 36 Measurements Plots: Time trend, histogram and spectrum Math: Arithmetic base signal calulation, FFT and advanced math-editor Search: search for any trigger criteria Jitter: TIE and Phase noise Optional Analysis: Advanced jitter and eye diagram analysis Optional triggering, decode and analysis serial busses: I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB 2.0, Ethernet, I2S, LJ, RJ, TDM Arbitrary function waveform generator: 50 MHz waveform generation Waveform types: Arbitrary, sine, square, pulse, ramp, triangle, DC-level, Gauß, Lorentz, Exponent. rise and fall, Sin(x)/x, white noise, Haversinus, cardiac Digital voltmeter: 4-digits voltage measurment the rms values of AC voltage, DC voltage as AC/DC voltage Trigger frequency counter: 8-digits Display: 15.6 Zoll (396 mm) Farb-TFT; High Definition (1920 x 1080); Capacitive (multitouch capable) touchscreen Connectivity: USB host (x7), USB device, LAN (10/100/1000 Base-T Ethernet; LXI Compliant), DisplayPort, DVI-D, Video output e*Scope®: Diplay and remote control of cscilloscopss via network connection with standard webbrowser Standard probes: One passive 10-MΩ-voltage probe with <4 pF capacitive load per channel (one passive analog probe per FlexChannel: TPP1000 1 GHz probe at models w/ 1 GHz or 2 GHz bandwidth) Dimension (HxWxD): 309x454x204mm Weight: 11.4 kg
