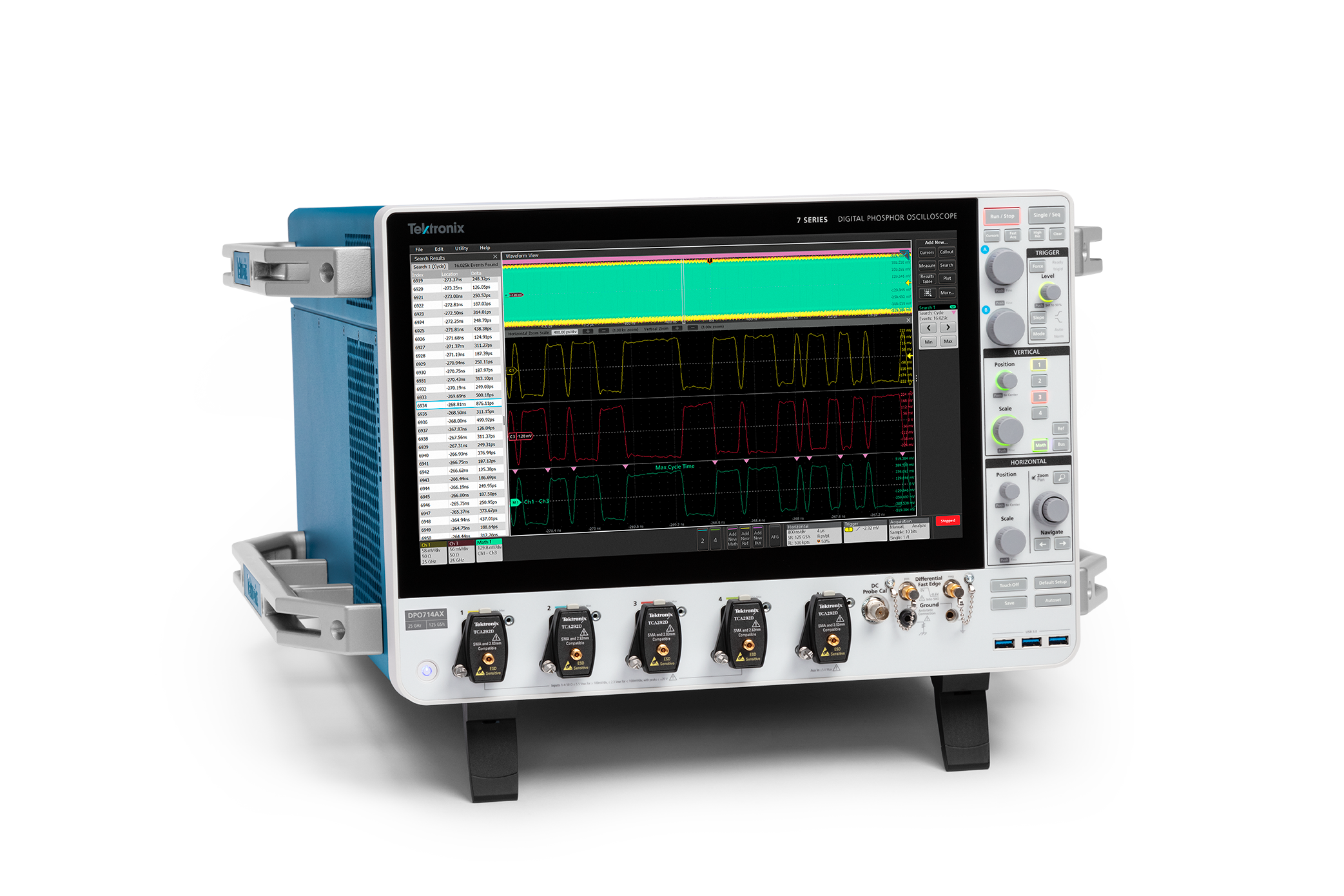

Tektronix 7 Series DPO – Built for Breakthroughs
The Tektronix 7 Series DPO Oscilloscope is built to meet the uncompromising demands of high-speed serial, RF, and high-energy physics applications. With industry-leading signal fidelity, exceptional ENOB, and the lowest noise floor in its class, the 7 Series DPO empowers engineers, researchers, and innovators to push the boundaries of what’s measurable.
Engineered for Performance, Designed for Discovery
Accelerate your workflow with faster measurement throughput, advanced triggering, and 10x faster data offload via 10GbE and TekHSI protocol. Backed by a 15.6-inch high-definition touchscreen and a user interface designed for clarity, the 7 Series DPO delivers both the precision and efficiency needed to turn complex testing into breakthrough results.
Request A Quote
Why Choose the Tektronix 7 Series DPO?
Introduction to Tektronix 7 Series DPO
Tektronix 7 Series DPO - UI
Tektronix 7 Series DPO - Measurements
Tektronix 7 Series DPO - Low Noise
Tektronix 7 Series DPO - Throughput
Tektronix 7 Series DPO - Jitter
Key Advantages of the 7 Series DPO
- Unmatched Signal Fidelity – Industry-leading ENOB and the lowest noise floor in its class for cleaner, more accurate captures.
- High Bandwidth Options – Scalable from 8 GHz to 25 GHz with customer-upgradeable bandwidths to protect your investment.
- Precision Timing – Ultra-low intrinsic jitter timebase for the most accurate timing and jitter measurements.
- Fast Data Throughput – 10× faster data offload using the 10GbE port and TekHSI protocol to accelerate analysis and workflows.
- Deep Record Length – Standard 500 Mpts captures with optional 1 Gpt and 2 Gpt upgrades for long, detailed traces.
- User-Centric Design – 15.6-inch HD touchscreen paired with an award-winning UI for faster setup and clearer results.
Designed for Critical Applications
- High-Speed Serial Validation – Capture and analyse today’s fastest serial links with the fidelity they require.
- RF & Wireless Research – Wide bandwidth and low noise floor provide clean signals for advanced RF analysis.
- High-Energy Physics – Precision timing and low jitter support accurate, repeatable measurements in demanding experiments.
- Advanced R&D Labs – Deep memory, high sample rates, and fast offload streamline complex testing workflows.
- Mission-Critical Reliability – Built on Tektronix engineering and supported by a standard 1-year warranty.
