Pomona

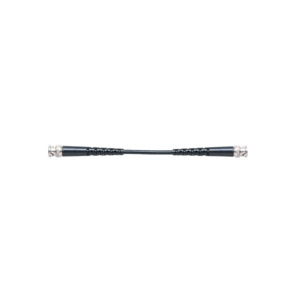

Pomona 2249-Y-180 Cable Assembly w/BNC (M), RG223/U, 50 Ohms, 180” Long, 2249 Series
Part #34775.1
MFG #2249-Y-180
Pomona
Pomona 2249-Y-180 Cable Assembly w/BNC (M), RG223/U, 50 Ohms, 180” Long, 2249 Series
Part #34775.1
MFG #2249-Y-180
£
£
- Description
- Attributes
- Documents
- The molded strain relief is directly bonded to the cable jacket for superior strength and durability.
- PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability.
- Gold-plated center contacts assure the most noise free connection possible.
- The connectors and cable are impedance matched.
Brand: Pomona
Series: 2249 Series
Cable Diameter: 0.212"
Cable Length: 180"
Cable Type: RG223/U
Capacitance: 30.8pF
Contact Finish: Gold Plated
Contact Material: Brass
Finish: Tarnish Resistant Nickel Plated
Impedance: 50 Ω
Jacket Material: Polyvinyl Chloride Non-Contaminating
Material: Brass
Quote Required: No
Shielded: Yes
Temperature Range: -40-60°C
Voltage: 500 V
Wire Material: Silver Plated Copper
Wire Size AWG: 19 AWG
£
£
