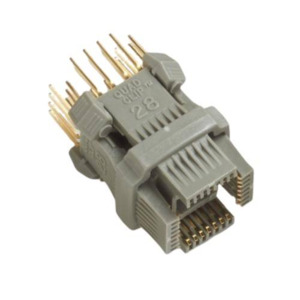

Pomona 5280 PLCC Clip, 28 Pins, 7x7, 500 V, 1 A, Gray
Part #35234.1
MFG #5280
Pomona
Pomona 5280 PLCC Clip, 28 Pins, 7x7, 500 V, 1 A, Gray
Part #35234.1
MFG #5280
£
£
- Description
- Attributes
- Documents
- Test adapters are designed for testing surface-mounted PLCC chips with "J" leads (JEDEC MO047 and MO-052).
- The patented lock-on design attaches directly to the surface-mounted
- IC and provides hands-free access to all of the chip leads.
- Gold-plated upper contacts assure noise-free, low-resistance connections.
- Standard .025 square pins accept wire-wrap, .025 sq. receptacle, or soldered wires.
- Pins are staggered to use the least space
- Gold-plated lower contacts assure the best connection to chip leads.
Brand:Â Pomona
Color:Â Gray
Contact Finish:Â Gold Plated
Contact Material:Â Beryllium Copper/Phosphor Bronze
Current:Â 1 A
Insulation:Â Glass filled Nylon
Maximum Temperature: 215°F
Quote Required:Â No
Voltage Rating:Â 500 V
£
£
