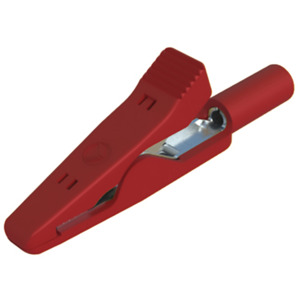

Miniature alligator clip with high strength insulation and nickel-plated brass/bronze jaws. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. Capable of clamping flat components (soldering eyes) and wire up to a maximum diameter of 4mm.
Brand:Â SKS Hirschmann Test & Measurement
Series:Â MA Series
Alternate Product Number:Â 930317801
AC Voltage:Â 30 V
Color:Â Red
Connection:Â 2mm Socket
Current Rating:Â 8 A
DC Voltage:Â 60 V
Flammability Rating:Â HB
Housing Material:Â PP
Material:Â Bronze, Nickel Plated
Range:Â 4 mm
Socket Size:Â 2 mm
Style:Â Mini
Temperature Range: -25 to +100°C
Terminal Type:Â Socket
Type:Â Alligator Clip
US SKU #:Â 10117620
Voltage Rating:Â 60 V
£
£
