SKS Hirschmann Test & Measurement MA 1 grau / grey Alligator Clip, Gray, 2mm, 4mm Range, MA Series

Part #NS04 930317806

MFG #MA 1 grau / grey

SKS Hirschmann Test & Measurement MA 1 grau / grey
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement

SKS Hirschmann Test & Measurement MA 1 grau / grey Alligator Clip, Gray, 2mm, 4mm Range, MA Series

Part #NS04 930317806

MFG #MA 1 grau / grey

£
£
Multiples of: 50

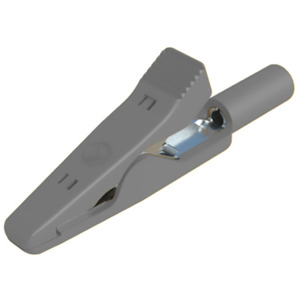

Miniature alligator clip with high strength insulation and nickel-plated brass/bronze jaws. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. Capable of clamping flat components (soldering eyes) and wire up to a maximum diameter of 4mm.


Brand: SKS Hirschmann Test & Measurement
Series: MA Series
Alternate Product Number: 930317806
AC Voltage: 30 V
Color: Gray
Connection: 2mm Socket
Current Rating: 8 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: PP
Material: Bronze, Nickel Plated
Range: 4 mm
Socket Size: 2 mm
Style: Mini
Temperature Range: -25 to +100°C
Terminal Type: Socket
Type: Alligator Clip
US SKU #: 10117624
Voltage Rating: 60 V
£
£
Multiples of: 50
