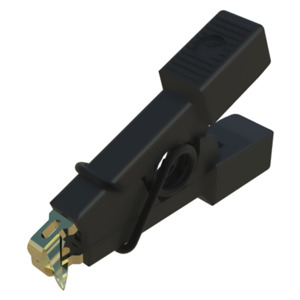

SKS Hirschmann Test & Measurement MICRO-SMD CLIP 1 Alligator Clip, Black, 0.64mm Pin Terminal, 8mm

Part #NS04 972416100

MFG #MICRO-SMD CLIP 1

£
£
Multiples of: 10

Spring-loaded, two-pole test clip, specially designed for SMD components. Gold-plated, hardened tip for testing circuits, flat-nosed grips for individual components, notch for gripping thin wires. Balanced spring force permits testing of large and small components. 0.64mm pin connection and electrically insulated spring.


Brand: SKS Hirschmann Test & Measurement
Series: Micro-SMD Series
Alternate Product Number: 972416100
AC Voltage: 30 V
Color: Black
Connection: Pin
Current Rating: 1 A
DC Voltage: 60 V
Flammability Rating: HB
Housing Material: PBT
Material: Copper-Beryllium, Gold Plated
Pin Size: 0.64 mm
Range: 0-8 mm
Socket Size: 0.64 mm
Style: Micro, Spring Loaded
Temperature Range: -30 to +70°C
Terminal Type: Pin
Type: Alligator Clip
US SKU #: 10112272
Voltage Rating: 60 V
£
£
Multiples of: 10
