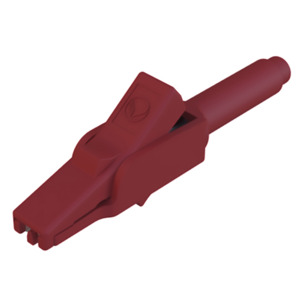

Contact-protected Miniature alligator clip with high strength insulation and nickel-plated bronze jaws. Clamping range up to a bolt diameter of 6 mm. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. 4 mm diameter brass socket connection.
Brand: SKS Hirschmann Test & Measurement
Series: MA Series
Alternate Product Number: 973889101
AC Voltage: 300 V
Color: Red
Connection: Unsprung Socket 4mm
Current Rating: 15 A
DC Voltage: 300 V
Flammability Rating: HB
Housing Material: PA
Material: Bronze, Nickel Plated
Range: 6 mm
Socket Size: 4 mm
Temperature Range: -25 to +80°C
Terminal Type: Solder Terminal
Type: Alligator Clip
US SKU #: 10117875
Voltage Rating: 300 V
